Metal Roofing Sheets Roll Forming Machine for Sale

  • Metal Roofing Sheets Roll Forming Machine for Sale
  • Metal Roofing Sheets Roll Forming Machine for Sale
  • Metal Roofing Sheets Roll Forming Machine for Sale
  • Metal Roofing Sheets Roll Forming Machine for Sale

Metal Roofing Sheets Roll Forming Machine for Sale

    Unit Price: 19800~29800 USD
    Payment Type: T/T,L/C,D/A,D/P,Western Union
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
    Packaging: nude packing
    Productivity: 45
    Brand: zhongtuo
    Transportation: Ocean,Land
    Place of Origin: cangzhou
    Supply Ability: 30sets/month
    Certificate: CE, ISO, SGS

Basic Info

Model No.: ZT-004-080

Product Description

Metal Roofing Sheets Roll Forming Machine for Sale

Brief Introduction:

Double roofing sheet roll forming machine is also called double layer roll forming machine or double layer machine.It is a kind of machine which have two production lines for the roof sheet, the upper layer is one line, and the under layer is another line.But the layers or two lines can not product at the same time. Compared with two sets single layer machine, it can save space,money,just with one electric control desk and one hydraulic station, so it is easy to do the maintenance for workers.

Photo of double layer machine for your reference:

IMG_0825


Usage of the roof sheet

The roof sheet made by the double layer machine can be widely used in Industrial and civil buildings, warehouse, special construction, large span steel structure house as the roof, walls or interior and exterior decoration. Its thickness is from 0.3 mm to 0.8 mm,width can be 914 mm,1000 mm,1200 mm,1220 mm,1250 mm. This is the common and standard sizes. You can also give your requests about the sizes , we can make and design the machine as per your special requests on sizes.

Composition of those two layer (you can choose)

Trapezoidal + trapezoidal

Corrugated + trapezoidal

Glazed + trapezoidal

Component of Metal Roofing Sheets Roll Forming Machine for Sale

No.

Name

Unit

Qty

1

Manual decoiler

set

1

2

Main forming machine

set

1

3

Electric control system

set

1

4

Hydraulic pump station

set

1

5

Post cut

set

1

6

Electric motor

set

1

7

Product receiving table

set

1

Features:

1. Lower noise, easy to operate

2. Design as customers` request

3. Controlled by PLC

4. Can also provide materials

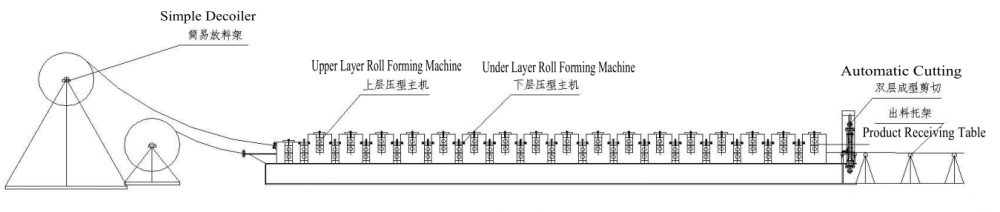

Working flow:

double layer machine



Main parameter of Metal Roofing Sheets Roll Forming Machine for Sale for your reference(trapezoidal + trapezoidal)

No.

Main parameter

1

Length of the main part

About 8500 х 1650 х 1500 mm

2

Weight of main part

About 6.5 t

3

Voltage

380 V/50 HZ 3 Phase (as customer`s request)

4

Roller fixer

Middle plate welded

5

Frame

350 H steel welded

6

Frame thickness

20 mm

7

Drive mode

Chain

8

Material of rollers

45# steel, surface hard chromium plating.

9

Material of shafts

45# steel

10

Diameter of shafts

Φ 80 mm

11

Number of rollers

Up layer: 13 rollers

Down layer: 15 rollers

14

Main power

5.5 kw



Other pictures about Metal Roofing Sheets Roll Forming Machine for Sale

combined pictures of double layer
